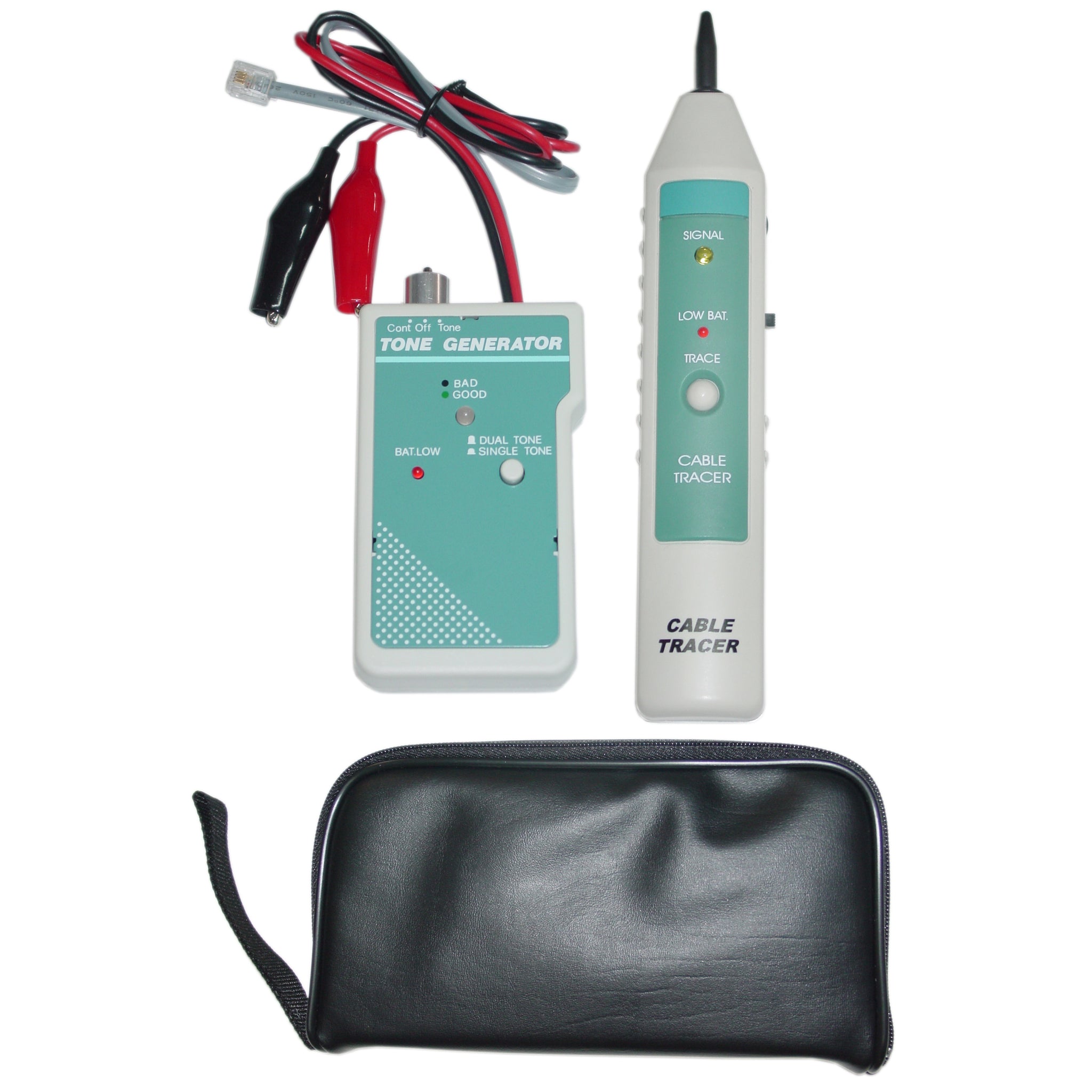

The Tone Generator is very practical tool, which provides a single or dual tone signal, two test leads and 4-conductor modular cable. It generates a signal from one end and traces the cables from the other by Probe, even when cables was in bundle or hidden in a mess punch down blocks or wall plates. It is easy to be used to verify cables continuity, pair condition, line polarity and voltage in network cabling systems (Category 5 and Coax) and modular telephone lines etc.
Tone Generator Features:- • Provides a tone switch for choosing either a single solid tone or dual alternating tone • Provides a toggle switch to control the 3 modes of operation • A three colors LED indicator display for line polarity, continuity and voltage testing • Provides black and red testing leads and a standard 4 pin modular cable for individual wire test or modular jack test Handy size and ease of use Tone Generator Specifications:- • 1 ft each of red and black test lead • 1 ft of 4 pin Modular cord and plug • One 3-position toggle switch for operation modes control • One 3-colors LED display for line polarity, continuity and voltage test • One 2-position slide switch for buzzer volume level selection • Power: 9 VDC Battery • Size: 115x63x26mm(4.53" x2.49" x1.03" ) • Weight. 0.42 LB. Probe Features:- • Can trace and identify wires or cables in a bundle or a group without damaging cables insulation • Can work with any existed tone generator in the market • Two levels of buzzer volume can be selected for increasing sensitivity and meeting with any work environment • Power switch prevents battery drain Probe Specifications:- • One push button test switch • One 2-position volume level switch • Power. 9VDC BatteryThe Tone Generator is very practical tool, which provides a single or dual tone signal, two test leads and 4-conductor modular cable. It generates a signal from one end and traces the cables from the other by Probe, even when cables was in bundle or hidden in a mess punch down blocks or wall plates. It is easy to be used to verify cables continuity, pair condition, line polarity and voltage in network cabling systems (Category 5 and Coax) and modular telephone lines etc.
