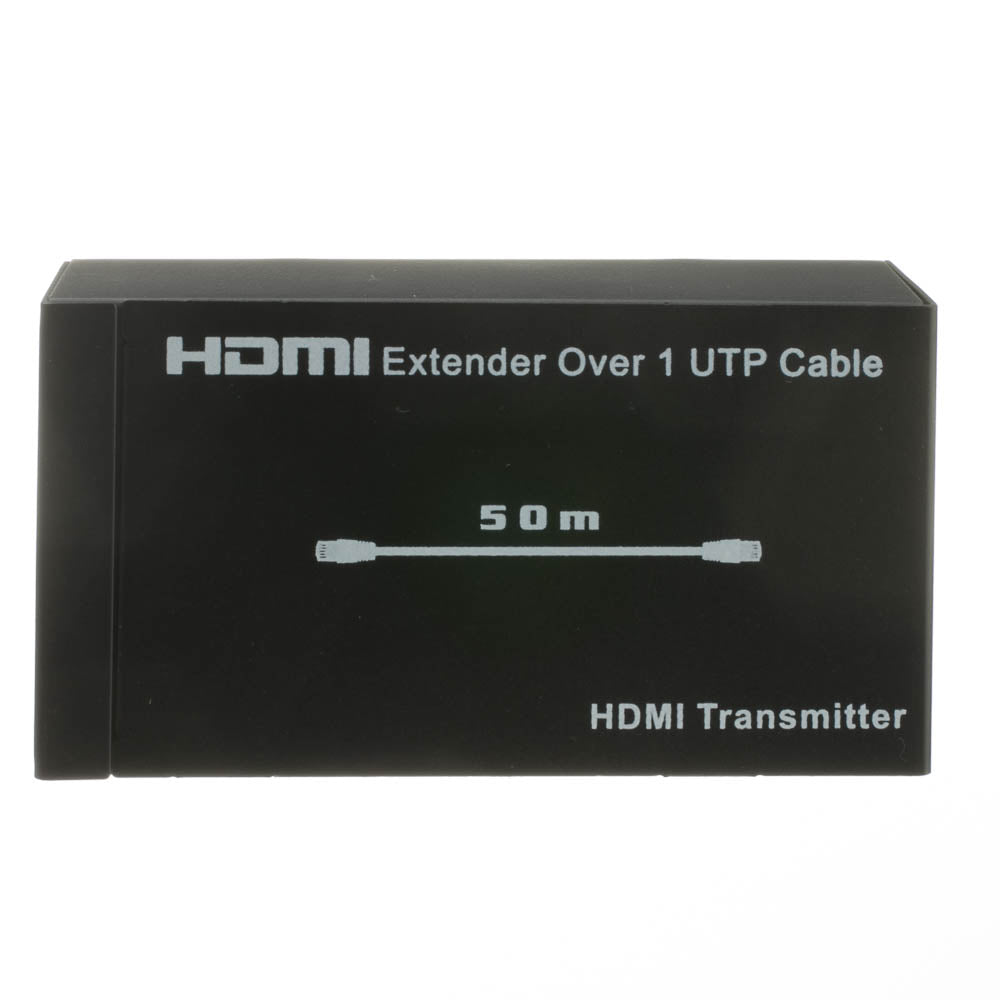

The HDMI Extender over Single Cat5e/6 with Bi-directional IR extends high definition video and audio signals and IR, at a distance of up to 164ft/50m over a single Cat5e/6 cable. Features EDID management, which allows and encourages source and display “handshake” for seamless integration. With only one cost effective Cat5e/6 cable, high definition sources with HDMI outputs can be connected to high definition displays with HDMI inputs over long distances. Deep color video, DTS-HD or Dolby TrueHD audio is supported and compatible with the extender. In addition, the extenderis also equipped with bi-directional IR pass-through which allows for source or display control. The extender includes two units: transmitting unit and receiving unit. The transmitting unit is used to capture the HDMI input with IR signals and carries the signals via one cost effective Cat5e/6 cable. The receiving unit is responsible for equalizing the transmitted HDMI signal and reconstructing IR and serial control signals. The extenderoffers the most convenient solution for HDMI extension over a single Cat5e/6 with long distance capability, and is the perfect solution for any application. This Device Supported Video formats of-: 1080p, 1080i, 720p, 576p, 576i, 480p, 480i & Digital Audio formats of:- DTS-HD, Dolby TrueHD, LPCM 7.1, AC3, DTS, Direct Stream Digital (DSD) • HDMI Extender over Cat5E/Cat6 Specifications • Full HD 1080p extension to 50 meter length • Flexible installation with wall mounting ear • High Speed HDMI with Ethernet, HDCP v1.2 and 3D support • Super IR control system, forward or backward • DC power in receiver side, not in sender side, good for installation • Operating Temperature range: 5 to 131 F • Operating Humidity range: 5 to 90% RH (Non Condensing) • Power Input: AC(50Hz.60Hz) 100- 240V • Power Output: DC 5V
